Battery Module Explained: Structure, Cell Connections, Thermal Management, and Safety

How individual battery cells are assembled into reliable modules through electrical connections, mechanical structures, thermal management, and safety engineering.

🔋 iAtlas Library #03 | Battery · Fundamentals

Self-Test | Check Your Knowledge

Do you already understand how battery modules work?

Before reading this article, answer three questions to evaluate your knowledge of battery module design.

If you can answer all three confidently, you may be ready to continue to the next topic: Battery Pack.

Answers and explanations are provided near the end of this article.

Question 1. What is the primary purpose of a battery module?

A. To manufacture active materials for battery electrodes
B. To integrate multiple battery cells into a manageable electrical and mechanical assembly
C. To replace the electrolyte inside battery cells
D. To convert alternating current into direct current

Question 2. What happens when identical battery cells are connected in series?

A. The nominal voltage increases while the capacity in Ah remains approximately the same
B. The nominal voltage remains unchanged while the capacity in Ah increases
C. Both the nominal voltage and capacity in Ah always double
D. The cells become electrically isolated

Question 3. Why is thermal management important in a battery module?

A. It eliminates the need for a Battery Management System
B. It allows the cells to operate without electrical connections
C. It helps control cell temperatures and reduce temperature differences between cells
D. It increases the amount of lithium stored in the electrodes

Check your answers in the Self-Test Answers & Explanations section near the end of this article.

Industry Snapshot

A battery module is an intermediate assembly that integrates multiple battery cells into a coordinated electrical and mechanical structure.

It plays an important role in conventional electric vehicle (EV) battery packs, energy storage systems (ESS), and industrial battery applications.

While individual battery cells store and release energy, battery modules organize those cells into a structure that can be connected, monitored, protected, and integrated into a larger system.

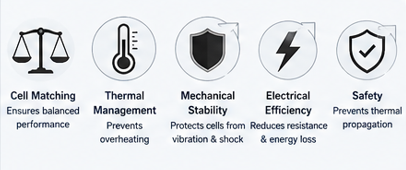

Battery module design affects:

• Electrical voltage and capacity
• Power delivery
• Mechanical stability
• Heat transfer and temperature uniformity
• Manufacturing efficiency
• Maintenance and replacement strategies
• Safety and reliability
• Overall battery pack architecture

However, not all modern battery systems use conventional modules.

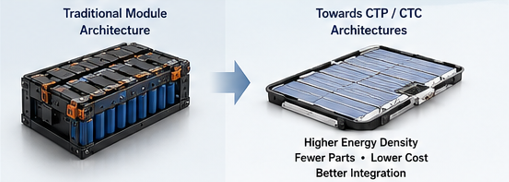

Cell-to-Pack (CTP) and other integrated architectures can reduce or eliminate the traditional module level.

Understanding battery modules therefore provides an important foundation for comparing conventional and next-generation battery architectures.

At a Glance

1. What Is a Battery Module?

A battery module is an assembly of multiple battery cells connected and supported as part of a larger battery system.

A typical module combines cells with electrical interconnections and mechanical structures.

Depending on the application, it may also include temperature sensors, voltage sensing connections, insulation, thermal interfaces, and protective components.

Its main purpose is to organize individual cells into a practical unit that can be integrated into a battery pack.

A conventional battery system is often represented as:

Battery Cell → Battery Module → Battery Pack

Each level performs a different function.

• Battery Cell: Stores and releases electrochemical energy.
• Battery Module: Integrates multiple cells electrically and mechanically.
• Battery Pack: Combines cells or modules with the supporting systems required for the final application.

A module is not simply a collection of cells.

It is an engineered assembly in which electrical connections, mechanical design, thermal behavior, and safety must be considered together.

2. Why Are Battery Modules Used?

Battery modules provide several engineering and manufacturing benefits.

2.1 Electrical Integration

Individual lithium-ion cells have limited voltage and capacity.

Multiple cells can be connected to meet the requirements of larger systems.

Modules provide a structured way to organize these electrical connections.

2.2 Mechanical Support

Battery cells must remain securely positioned during operation, transportation, and vibration.

Module structures can provide:

• Cell positioning
• Mechanical support
• Protection against movement
• Controlled compression, where required
• Interfaces for pack assembly

The required mechanical design depends on the cell format and application.

2.3 Thermal Integration

Battery cells generate heat during charging and discharging.

Modules can incorporate thermal interfaces that help transfer heat to a cooling system.

They may also help control temperature differences between neighboring cells.

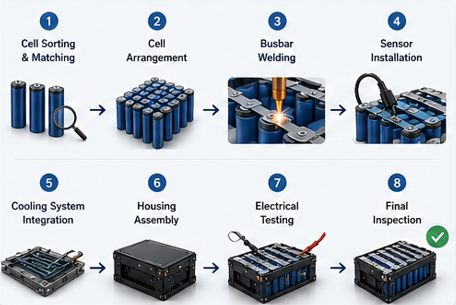

2.4 Manufacturing and Assembly

Modules can simplify certain manufacturing operations by organizing cells into repeatable assemblies.

This may support:

• Automated cell placement
• Electrical joining
• Inspection
• Module-level testing
• Pack assembly

However, module manufacturing also adds components, assembly steps, mass, and cost.

These trade-offs have encouraged the development of more integrated battery architectures.

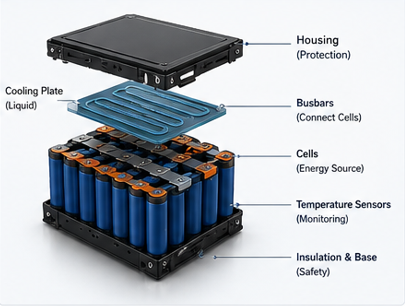

3. Main Components of a Battery Module

The exact structure varies by manufacturer, cell format, and application.

Nevertheless, several components are commonly found in conventional battery modules.

3.1 Battery Cells

Battery cells are the fundamental energy storage units.

Modules may contain cylindrical, prismatic, or pouch cells.

Cell selection influences:

• Module dimensions
• Electrical configuration
• Cooling requirements
• Mechanical structure
• Assembly process
• Energy density

Different cell formats require different approaches to packaging and integration.

3.2 Busbars and Electrical Interconnections

Busbars are conductive components used to connect battery cell terminals.

They provide electrical pathways between cells and toward the larger battery system.

Common conductive materials include copper and aluminum.

Their design must consider:

• Current-carrying capability
• Electrical resistance
• Heat generation
• Joint reliability
• Mechanical stress
• Manufacturing method

Electrical connections may be produced using welding, bonding, mechanical fastening, or other suitable joining technologies.

The appropriate method depends on the cell design and electrical requirements.

3.3 Module Frame and Mechanical Supports

A module frame or support structure helps maintain cell positioning and mechanical integrity.

It may include:

• Side plates
• End plates
• Cell holders
• Compression structures
• Structural adhesives
• Fasteners

Some pouch and prismatic cell designs require controlled mechanical support to accommodate swelling and maintain appropriate contact conditions.

3.4 Electrical Insulation

Insulation materials help prevent unintended electrical contact between conductive components.

They may be used between:

• Cells and module structures
• Busbars and neighboring components
• Electrical terminals and enclosures

Insulation design must consider operating voltage, environmental conditions, mechanical movement, and applicable safety requirements.

3.5 Temperature Sensors

Temperature sensors provide information about thermal conditions within the module.

They can help the battery management system monitor operating conditions and identify abnormal temperature behavior.

Sensor placement is important because temperatures may differ between cells and within the same module.

3.6 Voltage Sensing Connections

Voltage sensing connections allow monitoring electronics to measure individual cell voltages or groups of parallel-connected cells.

These measurements support functions such as:

• Voltage monitoring
• Overvoltage protection
• Undervoltage protection
• Cell balancing
• Fault detection

The exact monitoring architecture depends on the battery system.

3.7 Thermal Interface Materials

Thermal interface materials help transfer heat between cells and cooling structures.

Examples include:

• Thermal pads
• Thermally conductive adhesives
• Gap fillers
• Other engineered interface materials

Their performance depends on thermal conductivity, contact conditions, electrical insulation requirements, and mechanical durability.

3.8 Protective Components

Depending on the module design, additional protective features may be included.

These can involve:

• Electrical isolation barriers
• Mechanical protection
• Venting pathways
• Fire-resistant or thermal barriers
• Cell-level protective elements

Safety features must be evaluated as part of the complete battery system.

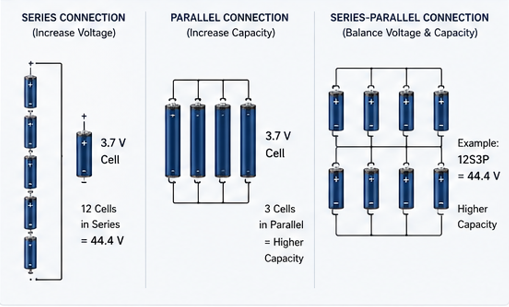

4. Series and Parallel Cell Connections

One of the most important concepts in battery module design is how cells are electrically connected.

The two basic configurations are series and parallel.

4.1 Series Connection

In a series connection, the positive terminal of one cell is connected to the negative terminal of another cell.

For identical cells, the nominal voltages add together.

The capacity in ampere-hours remains approximately equal to that of one cell.

Example

Consider four identical cells:

• Nominal voltage: 3.7 V per cell
• Capacity: 5 Ah per cell

When connected in series:

4S Configuration

Nominal Voltage = 3.7 V × 4 = 14.8 V

Capacity = 5 Ah

Approximate Nominal Energy = 14.8 V × 5 Ah = 74 Wh

Series connections are used to increase the voltage available from a battery assembly.

4.2 Parallel Connection

In a parallel connection, corresponding positive terminals are connected together, and corresponding negative terminals are connected together.

For identical cells, the nominal voltage remains approximately unchanged.

The capacities add together.

Example

Four identical 3.7 V, 5 Ah cells connected in parallel:

4P Configuration

Nominal Voltage = 3.7 V

Capacity = 5 Ah × 4 = 20 Ah

Approximate Nominal Energy = 3.7 V × 20 Ah = 74 Wh

Parallel connections increase total capacity and can increase current capability, subject to cell and connection limits.

4.3 Series-Parallel Connection

Battery modules often combine series and parallel connections.

For example, a 4S2P configuration contains:

• Four series-connected groups
• Two cells connected in parallel within each group
• Eight cells in total

Using identical 3.7 V, 5 Ah cells:

Nominal Voltage = 3.7 V × 4 = 14.8 V

Capacity = 5 Ah × 2 = 10 Ah

Approximate Nominal Energy = 14.8 V × 10 Ah = 148 Wh

Comparison of Electrical Configurations

These are simplified examples using identical cells. Real battery designs must account for cell variation, connection resistance, protection requirements, and operating limits.

5. How Battery Cell Format Influences Module Design

Battery module architecture depends heavily on the physical format of the cells.

5.1 Cylindrical Cell Modules

Cylindrical cell modules may contain many individual cells arranged in a defined pattern.

Important design considerations include:

• Cell spacing
• Electrical joining
• Cell holders
• Cooling pathways
• Vibration resistance
• Fault isolation

Large numbers of cells can create additional complexity in electrical connections and inspection.

5.2 Prismatic Cell Modules

Prismatic modules typically use rectangular cells arranged in a compact structure.

Engineering considerations include:

• Cell swelling
• Compression and restraint
• Electrical terminal connections
• Heat transfer
• Mechanical integration

Larger cell dimensions may reduce the total number of cells required for a given system.

5.3 Pouch Cell Modules

Pouch cells use flexible laminated packaging.

Module designs often require additional mechanical support.

Important considerations include:

• Controlled compression
• Cell expansion
• Tab connections
• Thermal interfaces
• Pouch protection
• Sealing integrity

The optimal design depends on the specific cell and application requirements.

6. Thermal Management in Battery Modules

Battery cells generate heat during charging and discharging.

If heat is not adequately managed, cell temperatures can increase and become uneven.

Temperature differences may affect:

• Available power
• Charging performance
• Cell aging
• Electrical resistance
• Cell-to-cell consistency
• Safety

Module thermal design therefore aims to manage both absolute temperature and temperature uniformity.

6.1 Air Cooling

Air cooling uses airflow to remove heat from battery components.

It may offer relatively simple system integration in suitable applications.

However, its cooling capability depends on airflow, geometry, operating conditions, and heat generation.

6.2 Liquid Cooling

Liquid cooling systems transfer heat through cooling plates, channels, or other liquid-cooled structures.

They are widely considered for applications with demanding thermal requirements.

A typical system may include:

• Cooling plates
• Coolant channels
• Thermal interface materials
• Pumps
• Heat exchangers
• Temperature monitoring

The cooling architecture is generally designed at the battery pack or system level, with module-level interfaces where applicable.

6.3 Thermal Uniformity

Temperature uniformity is important because cells operating at different temperatures may age at different rates.

Uneven temperatures can also create differences in electrical performance.

Effective thermal design therefore considers the entire module rather than only the hottest individual cell.

6.4 Thermal Runaway Propagation

Thermal runaway in one cell can create risks for neighboring cells.

Module and pack designs may incorporate features intended to reduce the likelihood or consequences of thermal propagation.

Examples include:

• Thermal barriers
• Cell spacing
• Controlled venting paths
• Heat-resistant materials
• Structural isolation features

No single feature guarantees that propagation will be prevented under every failure condition.

Safety must be evaluated through appropriate testing and system-level engineering.

7. Mechanical Design and Structural Reliability

Battery modules must withstand the mechanical conditions associated with their applications.

For electric vehicles, these may include:

• Road vibration
• Acceleration and deceleration
• Mechanical shock
• Thermal expansion
• Cell swelling
• Long-term fatigue

Module structures must maintain electrical and mechanical integrity throughout the intended service life.

7.1 Cell Positioning

Cells must remain correctly positioned to maintain reliable electrical connections and thermal interfaces.

7.2 Compression and Restraint

Some cell designs require controlled compression or restraint.

The appropriate force depends on the cell manufacturer’s specifications and operating conditions.

Excessive or insufficient mechanical constraint can affect performance and reliability.

7.3 Electrical Connection Reliability

Electrical joints must withstand operating currents, temperature changes, and mechanical stresses.

Poor connections can increase resistance and localized heating.

7.4 Material Selection

Module structures may use metals, polymers, composites, and other engineered materials.

Material selection involves trade-offs among:

• Weight
• Strength
• Thermal behavior
• Electrical insulation
• Manufacturing cost
• Durability

8. Battery Module Monitoring and BMS Integration

Battery modules are commonly connected to a Battery Management System (BMS).

The BMS may monitor cell voltages, temperatures, currents, and other system parameters.

Depending on the architecture, module-level monitoring electronics may be used.

These can provide information to a central battery controller.

Cell Voltage Monitoring

Voltage measurements help identify cells or cell groups approaching operating limits.

Temperature Monitoring

Temperature measurements support thermal protection and operating control.

Cell Balancing

Cell balancing helps manage differences in state of charge between series-connected cells or parallel groups.

Fault Detection

Monitoring systems can identify abnormal conditions that may require protective action.

It is important to distinguish the module’s physical monitoring connections from the complete BMS.

The BMS is a broader control and protection system that may operate across multiple modules and the entire battery pack.

9. Battery Module Manufacturing Process

Battery module manufacturing integrates qualified battery cells into a functional assembly.

A simplified process can be described as:

Cell Inspection → Cell Arrangement → Electrical Joining → Mechanical Assembly → Monitoring Integration → Testing

9.1 Cell Inspection and Selection

Cells are inspected to verify that they meet required specifications.

Depending on the process, relevant characteristics may include:

• Voltage
• Capacity
• Internal resistance
• Physical condition
• Traceability information

Cell consistency is important for reliable module operation.

9.2 Cell Arrangement

Cells are positioned according to the module’s mechanical and electrical design.

Automated equipment may be used to improve positioning accuracy and manufacturing consistency.

9.3 Electrical Joining

Busbars, tabs, or other conductive connections are joined to cell terminals.

Possible processes include:

• Laser welding
• Resistance welding
• Ultrasonic welding
• Mechanical fastening

Not every joining method is appropriate for every cell design.

Connection quality must be verified against the required electrical and mechanical specifications.

9.4 Mechanical Assembly

Frames, holders, compression structures, and protective components are installed.

9.5 Monitoring and Thermal Integration

Sensors, voltage sensing connections, insulation, and thermal interface materials are integrated as required.

9.6 Module Testing

Completed modules may undergo electrical, mechanical, and functional tests.

Typical checks can include:

• Voltage verification
• Connection resistance
• Insulation integrity
• Sensor operation
• Functional communication
• Visual inspection

The exact test requirements depend on the application and manufacturer specifications.

10. Battery Module vs. Cell-to-Pack Architecture

Traditional battery packs often use modules as intermediate assemblies.

However, integrated architectures are changing how battery systems are designed.

Conventional Module-Based Architecture

Cell → Module → Pack

Potential benefits include:

• Modular manufacturing
• Defined subassemblies
• Certain service and replacement strategies
• Flexible pack configuration

Potential disadvantages include:

• Additional structural components
• More assembly operations
• Additional mass and volume
• Additional electrical connections

Cell-to-Pack Architecture

Cell → Pack

Cell-to-Pack designs integrate cells more directly into the battery pack.

Depending on the design, this can reduce or eliminate conventional module structures.

Potential benefits include:

• Reduced component count
• Improved packaging efficiency
• Lower structural mass in some designs
• Simplified assembly architecture

Engineering challenges can include:

• Cell-level integration complexity
• Thermal management
• Mechanical support
• Manufacturing and repair strategies
• Safety and fault containment

CTP is not a single standardized design.

Different manufacturers use different structures and integration methods.

Why This Matters

The development of CTP shows that the battery module is an important engineering solution, but not a mandatory feature of every battery system.

The appropriate architecture depends on the application and overall system requirements.

11. Battery Modules in Different Industries

Electric Vehicles

EV battery modules are designed to support high energy capacity, power delivery, mechanical reliability, and thermal management.

Their design influences pack dimensions, weight, manufacturing complexity, and cost.

Energy Storage Systems

ESS modules are integrated into larger battery racks, cabinets, or containers.

Important requirements may include:

• Long-term reliability
• Serviceability
• Thermal management
• Electrical safety
• Manufacturing cost

Industrial Equipment

Industrial battery modules are used in applications such as:

• Automated guided vehicles
• Industrial robots
• Material-handling equipment
• Backup power systems

The required module design depends on operating conditions, power demand, space limitations, and maintenance requirements.

12. iAtlas Insight — Battery Module Design Is a Trade-Off Between Integration and Flexibility

Battery module engineering involves balancing competing requirements.

A highly modular design may offer manufacturing flexibility and clearly defined subassemblies.

However, additional module structures can increase weight, cost, and assembly complexity.

More integrated designs may improve packaging efficiency and reduce component count.

But they can also create new challenges in thermal management, mechanical integration, repairability, and manufacturing.

The central engineering question is not simply whether modules are good or bad.

It is:

Which battery architecture delivers the best overall performance, safety, cost, and manufacturability for the intended application?

This is why battery manufacturers and automakers continue to explore different approaches to cell, module, and pack integration.

Battery module design is not only about connecting cells. It is about transforming individual electrochemical units into a reliable and manufacturable energy storage assembly.

13. Did You Know?

• Battery modules are common in conventional battery packs, but they are not required in every modern battery architecture.
• Connecting identical cells in series increases voltage, while connecting them in parallel increases capacity in Ah.
• Busbar design can influence electrical resistance and localized heat generation.
• Cell temperature differences can contribute to uneven aging.
• Pouch and prismatic cells may require carefully designed mechanical restraint.
• Module-level voltage and temperature sensing can support a larger battery management system.
• Cell-to-Pack designs reduce or eliminate conventional module-level integration.

14. Frequently Asked Questions

What is a battery module?

A battery module is an assembly of multiple battery cells integrated through electrical connections and mechanical structures.

How is a battery module different from a battery pack?

A module is a subassembly of cells. A battery pack is the larger assembly designed for the final application and may include modules, monitoring electronics, protection devices, thermal management, and an enclosure.

How many cells are in a battery module?

There is no universal number. The cell count depends on cell format, voltage requirements, capacity, and system design.

What is the difference between series and parallel connections?

Series connections increase voltage. Parallel connections increase capacity in ampere-hours for identical cells.

Does every EV battery pack contain modules?

No. Some modern battery packs use Cell-to-Pack or other integrated architectures that reduce or eliminate conventional modules.

Why do battery modules need thermal management?

Thermal management helps control cell temperatures, maintain performance, reduce temperature differences, and manage safety risks.

Does a battery module have its own BMS?

Some designs include module-level monitoring electronics, while other functions are handled by a central BMS. The architecture varies by system.

What should I learn after battery modules?

Continue with Battery Pack to understand how complete battery systems are integrated.

15. Battery Fundamentals Learning Path

Continue through the iAtlas Battery Fundamentals series.

01 — Lithium-Ion Battery

Understand lithium-ion battery principles and major components.

02 — Battery Cell

Explore individual cell structure, formats, and performance.

03 — Battery Module (Current Article)

Learn how cells are connected, supported, monitored, and thermally integrated.

04 — Battery Pack

Understand complete battery system architecture.

05 — Battery Management System (BMS)

Explore battery monitoring, protection, and control.

06 — Battery Thermal Management System (BTMS)

Understand battery cooling and temperature management.

07 — Battery Safety

Study battery safety risks and protection strategies.

08 — What Is a Battery?

Explore the broader foundations of battery technology, including battery types and applications.

Continue Learning

Previous Article: Battery Cell

Next Article: Battery Pack

16. Technology in the Real World — iAtlas Industry Insights

Battery module design is closely connected to industrial competition in electric vehicles and energy storage systems.

Explore these topics in iAtlas Industry — Battery.

Cell-to-Pack Technology and EV Battery Architecture

Understand why automakers and battery manufacturers are reducing conventional module structures.

Technology Connection: Module Design · Packaging Efficiency · CTP

LFP and NCM Battery System Strategies

Explore how battery chemistry influences module and pack architecture.

Technology Connection: Cell Chemistry · Thermal Management · System Integration

Battery Manufacturing Automation and Cost

Learn how module assembly, electrical joining, and quality control affect manufacturing economics.

Technology Connection: Module Assembly · Automation · Production Yield

Energy Storage System Architecture

Explore how battery modules are integrated into larger racks, cabinets, and containerized ESS installations.

Technology Connection: Module Integration · Safety · Thermal Management

Connect these topics to the corresponding published iAtlas Industry — Battery articles after verifying their actual titles and URLs.

17. Self-Test Answers & Explanations

Review your answers to the three questions presented at the beginning of this article.

Question 1 — Correct Answer: B

To integrate multiple battery cells into a manageable electrical and mechanical assembly.

Battery modules organize cells through electrical connections, mechanical supports, and supporting components.

They allow cells to be integrated into larger battery systems.

Review: Section 1 — What Is a Battery Module?

Question 2 — Correct Answer: A

The nominal voltage increases while the capacity in Ah remains approximately the same.

When identical cells are connected in series, their voltages add together.

The ampere-hour capacity remains approximately equal to the capacity of one cell.

Review: Section 4.1 — Series Connection

Question 3 — Correct Answer: C

It helps control cell temperatures and reduce temperature differences between cells.

Thermal management supports performance, reliability, and safety.

Temperature differences between cells can contribute to uneven aging and electrical performance.

Review: Section 6 — Thermal Management in Battery Modules

How Did You Do?

3/3 — Excellent Foundation

You understand the key principles of battery module design. Continue to Battery Pack or explore the more advanced engineering sections.

2/3 — Almost There

Review the section related to the question you missed.

0–1/3 — Start Learning

Read the article from the beginning, focusing on module components, series and parallel connections, and thermal management.

This short test is a learning guide, not a comprehensive assessment of battery engineering expertise.

18. References

U.S. Department of Energy — Energy Storage

Official information on energy storage technologies and system applications.

Argonne National Laboratory

Research on battery materials, manufacturing, and energy storage technologies.

National Renewable Energy Laboratory

Research on battery performance, safety, thermal management, and system integration.

International Energy Agency — Global EV Outlook

Research on EV batteries, markets, and industry developments.

Battery University

Educational resources on battery design, performance, and battery systems.

ℹ️ About iAtlas

iAtlas is an independent publication covering batteries, semiconductors, OLED, advanced materials, AI, and global industrial trends.

We transform complex industrial developments into clear, reliable, and easy-to-understand insights.

Whether you’re following today’s industry news or building long-term expertise, iAtlas helps you understand not only what happened, but why it matters.

Technology creates change.
Insight creates opportunity.
— iAtlas
