Anode Explained: How Negative Electrode Materials Store Lithium Ions

Understanding how graphite, silicon, and other anode materials store lithium, why the solid electrolyte interphase matters, and how negative electrode design influences charging speed, energy density, battery lifetime, and safety.

🔋 iAtlas Library #10 | Battery · Materials

Self-Test | Check Your Knowledge

How well do you understand lithium-ion battery anodes?

Before reading this article, try answering the following three questions.

If you can answer all three confidently, you may already understand the fundamentals of negative electrode technology.

Answers and explanations are provided in Section 18.

Question 1. What is the primary function of the negative electrode in a conventional lithium-ion battery?

A. To separate the positive and negative electrodes
B. To reversibly store and release lithium during battery operation
C. To control battery cooling
D. To prevent electrolyte movement

Question 2. Why is silicon considered a promising anode material?

A. It eliminates the need for an electrolyte.
B. It does not undergo volume changes during cycling.
C. It has a much higher theoretical specific capacity than graphite.
D. It prevents all battery degradation.

Question 3. What is lithium plating?

A. The formation of metallic lithium on the negative electrode surface under certain charging conditions
B. A protective aluminum coating applied during electrode manufacturing
C. The normal movement of lithium ions through the separator
D. The process of coating cathode particles with carbon

Check your answers in Section 18 — Self-Test Answers & Explanations.

Industry Snapshot

The negative electrode is one of the fundamental components of a rechargeable lithium-ion battery.

During charging, lithium is stored in the negative electrode through electrochemical reactions.

During discharge, lithium is released from the negative electrode and moves toward the positive electrode through the electrolyte.

Graphite is the dominant negative electrode active material in many conventional lithium-ion batteries.

However, graphite has limitations in theoretical capacity and charging behavior.

As battery developers seek higher energy density and faster charging, alternative and composite anode materials are receiving increasing attention.

Silicon-containing anodes are particularly important because silicon can store substantially more lithium per unit mass than graphite in theory.

However, silicon also experiences large volume changes during lithiation and delithiation, creating challenges involving particle damage, electrode integrity, and interfacial stability.

Other negative electrode technologies, including lithium titanate and lithium metal, offer different electrochemical characteristics and engineering trade-offs.

Understanding anode materials is essential for understanding battery charging, degradation, manufacturing, and next-generation cell development.

At a Glance

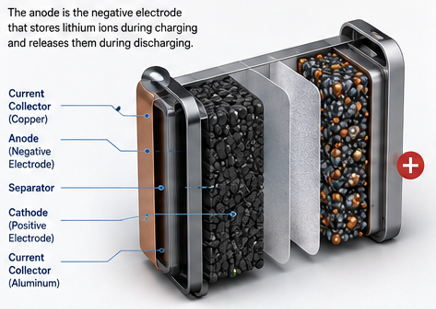

1. What Is a Battery Anode?

In the lithium-ion battery industry, the term anode commonly refers to the negative electrode.

Strictly speaking, an anode is the electrode at which oxidation occurs.

In a rechargeable battery, the electrochemical roles reverse between charging and discharging.

Therefore, negative electrode is the more precise term for the fixed battery component.

Nevertheless, anode material is widely used to describe negative electrode active materials.

This article follows that established terminology.

1.1 The Role of the Negative Electrode

The negative electrode participates in reversible electrochemical reactions involving lithium.

During charging, lithium ions move through the electrolyte toward the negative electrode.

During discharge, lithium is released from the negative electrode and lithium ions move toward the positive electrode.

1.2 Why the Anode Matters

Negative electrode materials influence:

• Cell energy density
• Charging performance
• Reversible capacity
• Cycle life
• Initial Coulombic efficiency
• Internal resistance
• Safety
• Degradation behavior

The negative electrode also plays an important role in determining whether a battery can accept high charging currents safely.

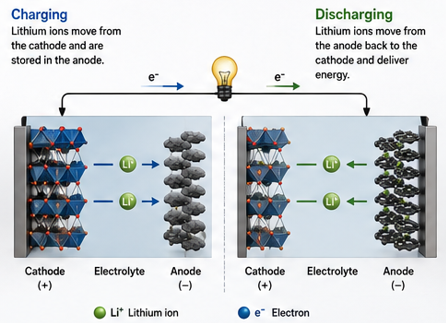

2. How Does a Lithium-Ion Battery Anode Work?

The negative electrode stores lithium through electrochemical reactions.

The exact mechanism depends on the active material.

2.1 During Charging

During charging:

1. An external power source drives lithium extraction from the positive electrode.
2. Lithium ions travel through the electrolyte toward the negative electrode.
3. Electrons are supplied to the negative electrode through the external circuit.
4. Lithium is stored in the negative electrode active material.

In graphite-based batteries, lithium is inserted between graphene layers.

2.2 During Discharging

During discharge:

1. Lithium is released from the negative electrode.
2. Lithium ions travel through the electrolyte toward the positive electrode.
3. Electrons travel through the external circuit.
4. Electrical energy is delivered to the connected load.

2.3 Lithium Intercalation

Intercalation refers to the insertion of lithium ions into suitable positions within a host structure.

Graphite is a well-known intercalation-type negative electrode material.

2.4 Lithium Alloying

Some materials, including silicon, store lithium through alloying reactions.

These materials can offer high theoretical capacity but may experience substantial structural changes.

2.5 Other Storage Mechanisms

Negative electrode materials may also store lithium through conversion reactions or other mechanisms.

Different mechanisms produce different characteristics in voltage, capacity, reversibility, and mechanical behavior.

3. What Is an Anode Made Of?

A conventional negative electrode is not composed entirely of active material.

It contains several components that work together.

3.1 Active Material

The active material stores and releases lithium.

Common examples include graphite and graphite–silicon composites.

3.2 Conductive Additives

Conductive additives improve electronic transport through the electrode.

Their selection and amount depend on the active material and electrode formulation.

3.3 Binder

The binder helps maintain mechanical cohesion and adhesion to the current collector.

Common graphite electrode formulations use water-processable binder systems such as CMC and SBR.

Silicon-containing electrodes may require additional binder engineering because of their volume changes.

3.4 Current Collector

Copper foil is widely used as the negative electrode current collector in conventional lithium-ion cells.

Copper is generally suitable for the low operating potentials associated with graphite negative electrodes.

Current collector selection depends on the electrochemical system.

3.5 Anode Electrode Structure

A simplified structure is:

Active Material + Conductive Additives + Binder → Electrode Coating → Current Collector

The properties of the finished electrode depend on more than active material chemistry.

Particle distribution, porosity, electrode thickness, binder behavior, and manufacturing quality also influence performance.

4. Graphite Anodes Explained

Graphite is widely used in commercial lithium-ion batteries.

It consists of carbon atoms arranged in layered structures.

These layers provide sites for lithium intercalation.

4.1 Graphite Structure

Graphite contains stacked graphene layers.

During charging, lithium ions enter suitable positions between these layers.

During discharge, lithium is extracted.

4.2 Theoretical Specific Capacity

Graphite has a theoretical specific capacity of approximately:

372 mAh/g

This corresponds to the fully lithiated composition LiC₆.

Actual usable capacity depends on material properties, electrode design, and operating conditions.

4.3 Advantages of Graphite

Graphite offers several favorable characteristics:

• Established electrochemical performance
• Relatively low operating potential
• Good reversibility under suitable conditions
• Commercial manufacturing maturity
• Compatibility with established lithium-ion cell designs

4.4 Limitations of Graphite

Important limitations include:

• Theoretical capacity ceiling
• Lithium plating risk during unfavorable charging conditions
• SEI-related irreversible lithium consumption
• Rate capability limitations in some electrode designs
• Temperature-dependent charging performance

4.5 Natural vs. Synthetic Graphite

Graphite used in batteries may originate from natural or synthetic sources.

Natural Graphite

Obtained from mined graphite and processed to achieve battery-grade characteristics.

Synthetic Graphite

Produced through controlled carbon processing and graphitization.

The two categories can differ in particle structure, purity, cost, processing requirements, and electrochemical characteristics.

Neither category is universally superior in every application.

5. Silicon Anodes Explained

Silicon is an important material for advanced lithium-ion negative electrodes.

Its primary attraction is its high theoretical lithium-storage capacity.

5.1 Why Silicon Stores More Lithium

Unlike graphite, which stores lithium mainly through intercalation, silicon stores lithium through alloying reactions.

Theoretical specific capacity depends on the assumed lithiated phase and calculation basis.

A commonly cited value for silicon is approximately:

3,579 mAh/g

for the Li₁₅Si₄ composition.

This is substantially higher than graphite’s theoretical specific capacity.

5.2 Why Silicon Is Difficult to Use

Silicon undergoes large volume changes during lithiation and delithiation.

These changes can cause:

• Particle cracking
• Electrode swelling
• Loss of electrical contact
• Repeated SEI formation
• Increased irreversible lithium consumption
• Capacity degradation

5.3 Silicon-Graphite Composites

One approach is to combine silicon-containing materials with graphite.

Graphite provides an established electrode framework, while silicon contributes additional lithium-storage capacity.

The achievable benefits depend on silicon content, particle structure, binder formulation, and cell engineering.

5.4 Silicon Oxide-Based Materials

Silicon oxide-based materials are also investigated and used in selected composite anodes.

They can offer different mechanical and electrochemical trade-offs compared with elemental silicon.

However, initial irreversible lithium consumption can be a significant challenge.

5.5 Engineering Solutions

Approaches to improving silicon-based anodes include:

• Nanoscale material design
• Carbon composites
• Engineered binders
• Particle morphology control
• Surface coatings
• Electrolyte additives
• Controlled electrode porosity
• Prelithiation strategies

No single solution eliminates all silicon-related challenges.

6. Other Important Anode Materials

Graphite and silicon are not the only negative electrode technologies.

6.1 Lithium Titanate (LTO)

Lithium titanate, commonly represented by Li₄Ti₅O₁₂, is an alternative negative electrode material.

It operates at a higher potential than graphite.

This can reduce certain lithium plating risks and support favorable cycling characteristics under suitable conditions.

However, the higher negative electrode potential reduces full-cell voltage and energy density when paired with a given positive electrode.

6.2 Hard Carbon

Hard carbon is an important negative electrode material in many sodium-ion battery designs.

Its disordered carbon structure can accommodate sodium through multiple storage processes.

Hard carbon performance depends strongly on precursor materials, processing conditions, and microstructure.

6.3 Lithium Metal

Lithium metal has a very high theoretical specific capacity.

It is being investigated for advanced rechargeable batteries, including selected solid-state architectures.

However, challenges include:

• Dendritic or irregular lithium deposition
• Interfacial instability
• Volume changes
• Coulombic inefficiency
• Short-circuit risks

Lithium metal is not equivalent to a conventional graphite intercalation anode.

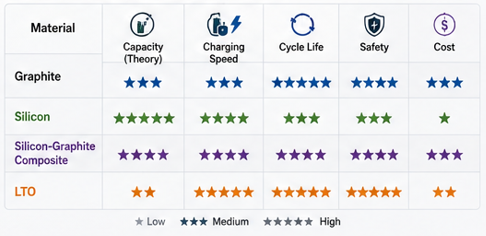

6.4 Anode Material Comparison

7. What Is the Solid Electrolyte Interphase (SEI)?

The Solid Electrolyte Interphase, or SEI, is one of the most important concepts in lithium-ion battery technology.

It is a passivation layer formed through reactions between the electrolyte and negative electrode surface.

7.1 Why the SEI Forms

Many conventional electrolytes are not fully stable at the low electrochemical potentials of graphite negative electrodes.

During initial charging, electrolyte reduction reactions occur.

Reaction products accumulate on the negative electrode surface and form the SEI.

7.2 Why the SEI Is Important

A functional SEI should:

• Permit lithium-ion transport
• Reduce continued electrolyte decomposition
• Limit unwanted electron transfer
• Help stabilize the electrode–electrolyte interface

7.3 SEI Formation During Initial Charging

SEI formation is particularly important during the battery formation process.

The initial charging protocol influences interfacial reactions and long-term cell behavior.

7.4 SEI Growth and Battery Aging

The SEI can continue to evolve during battery operation.

Continued SEI growth may:

• Consume cyclable lithium
• Increase interfacial resistance
• Reduce usable capacity
• Contribute to aging

7.5 SEI Challenges in Silicon Anodes

Silicon expansion and contraction can damage the existing SEI.

New surfaces may then become exposed to the electrolyte, causing further SEI formation.

This repeated process is one reason silicon-containing anodes require careful interface engineering.

8. Lithium Plating Explained

Lithium plating is an important negative electrode safety and degradation issue.

It occurs when metallic lithium deposits on the negative electrode surface rather than being stored through the intended insertion or alloying process.

8.1 Why Lithium Plating Occurs

Lithium plating can occur when charging conditions exceed the negative electrode’s ability to accommodate lithium safely.

Contributing factors may include:

• High charging current
• Low temperature
• High state of charge
• Elevated electrode polarization
• Limited lithium transport
• Cell aging
• Electrode design limitations

8.2 What Happens During Lithium Plating?

Under unfavorable charging conditions, the negative electrode potential can approach or fall below the lithium deposition potential.

Metallic lithium may then deposit on the electrode surface.

8.3 Why Lithium Plating Is a Problem

Lithium plating can contribute to:

• Loss of cyclable lithium
• Reduced battery capacity
• Increased degradation
• Nonuniform lithium deposition
• Potential internal short-circuit hazards

The severity depends on deposition morphology, reversibility, and cell conditions.

8.4 Lithium Plating vs. Normal Lithium Storage

Normal Graphite Storage

Lithium is inserted into graphite’s layered structure.

Lithium Plating

Metallic lithium is deposited on the negative electrode surface.

These are different electrochemical processes.

8.5 How Lithium Plating Risk Can Be Reduced

Engineering approaches include:

• Temperature-aware charging control
• Appropriate current limits
• Optimized electrode porosity
• Improved electrolyte transport
• Suitable graphite particle engineering
• Cell-level monitoring and charging algorithms

No charging strategy can guarantee zero lithium plating under every possible condition.

9. How Anode Materials Affect Fast Charging

Fast charging is one of the most demanding operating conditions for lithium-ion batteries.

The negative electrode is a critical part of the charging process.

9.1 Lithium Transport Limitations

Lithium must move through several regions:

Electrolyte → Electrode Pores → Particle Surface → Active Material

Transport limitations at any stage can increase polarization.

9.2 Graphite Intercalation Kinetics

Graphite must accommodate incoming lithium through intercalation.

If lithium arrives faster than it can be safely stored, lithium plating risk may increase.

9.3 Temperature Effects

Low temperature generally slows transport and electrochemical kinetics.

This can increase polarization and restrict charging capability.

9.4 Electrode Thickness

Thicker electrodes can increase energy capacity per unit area.

However, they may also increase transport resistance and create more challenging fast-charging conditions.

9.5 Fast-Charging Design Trade-Offs

Battery engineers must balance:

• Electrode thickness
• Porosity
• Particle size
• Conductivity
• Energy density
• Charging current
• Temperature
• Lifetime

Key Point

Fast charging is not simply a question of increasing charger power. It requires coordinated electrochemical, thermal, and electrical design.

10. Anode Degradation Mechanisms

Negative electrode degradation involves several interacting processes.

10.1 SEI Growth

Continued SEI formation can consume lithium and increase resistance.

10.2 Lithium Plating

Unwanted lithium deposition may reduce usable capacity and create additional safety concerns.

10.3 Particle Cracking

Mechanical stress can damage active material particles.

This is particularly important for high-expansion materials such as silicon.

10.4 Loss of Electrical Contact

Electrode expansion, contraction, or particle damage may disrupt electronic pathways.

10.5 Electrolyte Decomposition

Unwanted interfacial reactions can consume electrolyte components and affect cell performance.

10.6 Electrode Swelling

Volume changes may affect mechanical integrity and cell-level dimensional stability.

10.7 Loss of Lithium Inventory

Several degradation mechanisms consume lithium that would otherwise participate in reversible cycling.

This reduces the amount of lithium available for normal battery operation.

10.8 Loss of Active Material

Some degradation processes reduce the fraction of active material that remains electrochemically accessible.

The relative importance of these mechanisms depends on chemistry, cell design, and operating conditions.

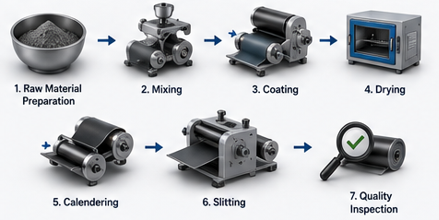

11. Anode Manufacturing and Electrode Engineering

Negative electrode performance depends strongly on manufacturing quality.

11.1 Active Material Preparation

Anode materials must meet requirements involving:

• Particle size distribution
• Purity
• Surface properties
• Morphology
• Moisture content
• Electrochemical characteristics

11.2 Material Mixing

Active materials, binders, conductive additives, and processing media are mixed to create a suitable electrode formulation.

Uniform dispersion is essential.

11.3 Slurry Preparation

Slurry properties influence coating stability and electrode uniformity.

Important characteristics include:

• Viscosity
• Solids content
• Dispersion quality
• Stability
• Rheological behavior

11.4 Electrode Coating

The slurry is applied to the current collector.

Coating uniformity influences local loading and electrochemical consistency.

11.5 Electrode Drying

Drying removes the processing medium to the required level.

Drying conditions may influence binder distribution, adhesion, and electrode structure.

11.6 Calendering

Calendering adjusts electrode thickness and density.

Excessive compression may reduce porosity and impair electrolyte transport.

11.7 Slitting

The electrode roll is cut to the required dimensions.

Cutting quality matters because burrs, particles, and edge defects can affect downstream assembly.

11.8 Anode Quality Control

Important characteristics may include:

• Coating thickness
• Areal loading
• Electrode density
• Porosity
• Adhesion
• Moisture
• Surface defects
• Particle contamination

Related Learning: iAtlas Library #14–#19 explain the individual electrode manufacturing stages.

12. Why Anode Porosity and Density Matter

Electrode design involves balancing energy storage and transport performance.

12.1 Electrode Density

Higher electrode density can improve volumetric energy characteristics.

However, increasing density may reduce pore volume.

12.2 Electrode Porosity

Porosity allows electrolyte to penetrate the electrode.

It supports ionic transport between active material particles and the electrolyte.

12.3 Excessive Porosity

Very high porosity can reduce volumetric energy density and may affect mechanical integrity.

12.4 Insufficient Porosity

Very low porosity can restrict electrolyte transport and increase concentration gradients.

12.5 Engineering Balance

The optimal electrode structure depends on:

• Active material
• Electrode thickness
• Charging requirements
• Energy-density targets
• Electrolyte properties
• Mechanical requirements

The best anode is not necessarily the densest electrode or the most porous electrode. It is the electrode whose structure supports the required balance of energy, power, and lifetime.

13. Initial Coulombic Efficiency and Prelithiation

Initial Coulombic Efficiency (ICE) is an important metric for negative electrode materials.

13.1 What Is Coulombic Efficiency?

Coulombic efficiency compares charge recovered during discharge with charge supplied during charging, under a defined measurement convention.

A simplified expression is:

Coulombic Efficiency (%) = Discharge Capacity / Charge Capacity × 100

The exact measurement convention and cycle definition should be specified.

13.2 Why Initial Efficiency Matters

During initial charging, some lithium may be consumed by irreversible reactions.

SEI formation is one important example.

This reduces the amount of lithium available for subsequent cycling.

13.3 Why Silicon Can Have Low Initial Efficiency

Silicon-containing materials may experience significant initial interfacial reactions.

Some silicon oxide-based materials can also consume lithium through irreversible material reactions.

13.4 What Is Prelithiation?

Prelithiation refers to introducing additional lithium into an electrode or cell system before normal operation.

Its purpose may include compensating for irreversible lithium losses.

13.5 Prelithiation Challenges

Prelithiation requires careful consideration of:

• Process control
• Material stability
• Safety
• Lithium dosage
• Manufacturing integration
• Long-term performance

It is not a universal requirement for all lithium-ion batteries.

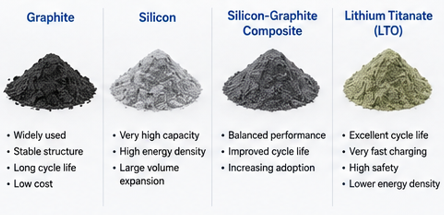

14. Anode Material Comparison: Graphite vs. Silicon vs. LTO

Different negative electrode materials offer different electrochemical characteristics.

These values and descriptions refer to active material characteristics, not complete commercial cell performance.

14.1 Why Silicon Does Not Automatically Produce Ten Times More Cell Energy

Silicon’s theoretical specific capacity is much higher than graphite’s.

However, complete cell energy depends on:

• Positive electrode capacity
• Electrode balance
• Active material loading
• Inactive components
• Cell voltage
• Packaging
• Mechanical expansion allowances
• Cycle-life requirements

Therefore, a large increase in anode material capacity does not translate directly into an equivalent increase in complete cell energy density.

14.2 Why LTO Can Be Useful Despite Lower Energy Density

LTO operates at a higher potential than graphite.

This reduces full-cell voltage for a given positive electrode but can support favorable charging and cycling characteristics in suitable designs.

It illustrates why the highest theoretical capacity is not always the best choice for every application.

15. Emerging Anode Technologies

Anode research continues to address the limitations of established materials.

15.1 Silicon-Rich Anodes

Increasing silicon content may improve capacity potential.

However, volume expansion and interface stability become increasingly important.

15.2 Engineered Graphite

Graphite development includes improvements in:

• Particle morphology
• Surface treatment
• Coatings
• Purity
• Electrochemical consistency

15.3 Advanced Binder Systems

New binder formulations aim to improve mechanical stability, particularly in high-expansion electrodes.

15.4 Advanced Electrolyte Additives

Electrolyte additives can influence SEI formation and interfacial stability.

Their effects depend on the complete electrochemical system.

15.5 Lithium Metal Anodes

Lithium metal is being studied for high-energy rechargeable batteries.

Important research areas include deposition uniformity, interface stability, and suppression of internal short-circuit mechanisms.

15.6 Anodes for Solid-State Batteries

Solid-state battery development introduces additional challenges involving solid–solid interfaces, pressure, contact stability, and mechanical changes.

15.7 Sodium-Ion Anodes

Hard carbon and other sodium-storage materials are important for sodium-ion battery development.

Their storage mechanisms and engineering requirements differ from those of conventional lithium-ion graphite anodes.

16. iAtlas Insight — Anode Engineering Is Central to Fast Charging and Battery Lifetime

Battery performance is often discussed in terms of energy density and cathode chemistry.

However, the negative electrode plays an equally important role in practical battery operation.

Energy Density

Higher-capacity anode materials can improve cell energy potential, but the benefits depend on complete cell design.

Fast Charging

Lithium transport, electrode polarization, and lithium plating risk can limit charging performance.

Battery Lifetime

SEI growth, particle damage, and loss of cyclable lithium influence long-term capacity retention.

Safety

Unwanted lithium deposition, mechanical damage, and interfacial instability can contribute to safety risks.

Manufacturing

Electrode uniformity, porosity, density, and binder performance influence practical reliability.

Emerging Technology

Silicon-containing and lithium metal anodes offer opportunities for improved energy storage, but introduce additional engineering challenges.

The central question is not simply which negative electrode material has the highest theoretical capacity.

It is:

How can anode materials, interfaces, and electrode structures be engineered to deliver higher energy density and faster charging without compromising lifetime and safety?

Advanced anode technology is not only about storing more lithium. It is about storing and releasing lithium efficiently, reversibly, and reliably throughout the battery’s service life.

17. Frequently Asked Questions

17.1 Why Do Silicon-Graphite Batteries Not Always Charge Faster Than Graphite Batteries?

Silicon can increase anode capacity potential, but fast charging depends on several factors.

These include lithium transport, electrode structure, electrolyte chemistry, temperature, negative electrode potential, and cell-level control.

Adding silicon does not automatically improve charging speed.

17.2 Can Lithium Plating Be Completely Prevented by a BMS?

A Battery Management System can reduce lithium plating risk by controlling charging conditions.

However, lithium plating depends on local electrochemical conditions inside the cell.

A BMS cannot directly eliminate every possible plating mechanism.

17.3 Why Is Copper Commonly Used for Negative Electrode Current Collectors?

Copper offers suitable electrical conductivity and electrochemical compatibility with the low potentials of conventional graphite negative electrodes.

Current collector selection also depends on the battery chemistry and operating conditions.

17.4 Why Can Two Graphite Anodes Have Different Cycle Lives?

Even when both use graphite, their performance may differ because of:

• Particle characteristics
• Surface coatings
• Binder formulations
• Electrode density
• Porosity
• Electrolyte compatibility
• Manufacturing quality

Complete cell design and operating conditions also influence lifetime.

17.5 Does Increasing Anode Thickness Always Improve Battery Energy Density?

Increasing electrode loading can improve the amount of active material per unit area.

However, thicker electrodes may create transport limitations and larger concentration gradients.

These effects can reduce power capability or charging performance.

Therefore, electrode thickness must be optimized for the intended application.

17.6 Why Is SEI Formation Important During Battery Manufacturing?

Initial charging establishes important electrode–electrolyte interfaces.

Controlled SEI formation helps stabilize the negative electrode surface and reduce continued electrolyte decomposition.

Formation conditions can influence initial efficiency, resistance, and long-term cell performance.

17.7 Are Lithium Metal and Lithium-Ion Graphite Anodes the Same?

No.

Graphite anodes store lithium mainly through intercalation.

Lithium metal electrodes involve metallic lithium deposition and dissolution.

The two systems have different electrochemical behavior, degradation mechanisms, and safety considerations.

18. Self-Test Answers & Explanations

Question 1 — Correct Answer: B

To reversibly store and release lithium during battery operation.

The negative electrode participates in lithium-storage reactions.

During charging, lithium is stored in the negative electrode.

During discharge, lithium is released.

Review: Sections 1–2 — Anode Fundamentals and Operating Principles

Question 2 — Correct Answer: C

It has a much higher theoretical specific capacity than graphite.

Silicon can theoretically store substantially more lithium per unit mass than graphite.

However, large volume changes and interfacial degradation create engineering challenges.

Review: Section 5 — Silicon Anodes Explained

Question 3 — Correct Answer: A

The formation of metallic lithium on the negative electrode surface under certain charging conditions.

Lithium plating can occur when charging conditions favor metallic lithium deposition rather than the intended storage reaction.

It can contribute to capacity loss, degradation, and safety risks.

Review: Section 8 — Lithium Plating Explained

How Did You Do?

3/3 — Excellent Foundation

You understand the key principles of negative electrode technology.

2/3 — Almost There

Review the section associated with your incorrect answer.

0–1/3 — Start Learning

Begin with Sections 1–5 to strengthen your understanding of anode materials.

This short test is intended as a learning guide rather than a comprehensive technical assessment.

19. Battery Materials Learning Path

Continue exploring the materials that make lithium-ion batteries work.

09 — Cathode Explained

Understand positive electrode materials, crystal structures, and electrochemical performance.

10 — Anode Explained — Current Article

Explore graphite, silicon, lithium storage, SEI formation, and lithium plating.

11 — Electrolyte Explained

Learn how electrolyte chemistry enables ion transport and influences electrode interfaces.

12 — Separator Explained

Understand separator structure, ionic transport, and electrical isolation.

13 — Battery Manufacturing Process Explained

Explore how battery materials are transformed into finished cells.

Continue Learning

Previous Article: Cathode Explained: How Positive Electrode Materials Shape Battery Performance

Next Article: Electrolyte Explained: The Ion Transport Medium Inside a Battery

Related Technical Reading

Lithium-Ion Battery — Library #01

Understand the basic operating principles of lithium-ion batteries.

Battery Cell — Library #02

Explore how positive and negative electrodes work together inside a cell.

Battery Safety — Library #07

Understand battery failure mechanisms and protection systems.

Battery Material Mixing — Library #14

Learn how electrode materials and binders are mixed.

Electrode Coating — Library #16

Explore how electrode slurry is applied to current collectors.

Electrode Calendering — Library #18

Understand how electrode density and porosity influence performance.

Battery Formation — Library #26

Learn why controlled initial charging is essential for establishing stable electrode interfaces.

20. Technology in the Real World — iAtlas Industry Insights

Negative electrode technologies influence battery manufacturing, electric vehicle development, and advanced energy storage.

For market developments, company strategies, and supply chain analysis, explore related articles in iAtlas Industry — Battery.

Graphite Supply Chains and Battery Manufacturing

Understand how natural and synthetic graphite production influences battery material availability and manufacturing strategy.

Technology Connection: Graphite · Material Processing · Supply Chain

Silicon Anodes and Next-Generation EV Batteries

Explore how silicon-containing anode technologies are being developed for commercial batteries.

Technology Connection: Silicon · Energy Density · Commercialization

Fast-Charging Batteries and EV Technology

Examine how charging infrastructure, battery design, and cell engineering influence electric vehicle charging performance.

Technology Connection: Fast Charging · Lithium Plating · EV Batteries

Advanced Anode Materials and Battery Innovation

Explore the industrial development of silicon-rich, lithium metal, and other advanced negative electrode technologies.

Technology Connection: Advanced Materials · Battery R&D · Manufacturing

Battery Materials and Recycling

Understand how battery recycling and material recovery connect to long-term supply chain development.

Technology Connection: Material Recovery · Sustainability · Circular Economy

Connect these topics to corresponding published iAtlas Industry — Battery articles after confirming their exact titles and URLs.

21. References

U.S. Department of Energy — Vehicle Technologies Office

Research and development information covering battery materials, performance, and electrification.

Argonne National Laboratory

Research covering battery materials, degradation, manufacturing, and advanced electrochemistry.

National Renewable Energy Laboratory (NREL)

Research on battery degradation, performance, and energy storage.

ReCell Center

Research related to advanced battery recycling and material recovery.

Battery University

Educational resources covering lithium-ion batteries, charging, aging, and battery performance.

ℹ️ About iAtlas

iAtlas is an independent publication covering batteries, semiconductors, OLED, advanced materials, AI, and global industrial trends.

We transform complex industrial developments into clear, reliable, and easy-to-understand insights.

Whether you’re following today’s industry news or building long-term expertise, iAtlas helps you understand not only what happened, but why it matters.

Technology creates change.
Insight creates opportunity.
— iAtlas
